LM324H 1MHZ High Voltage Bipolar Opamp

1、Features

Single-Supply Operation from +3V ~ +36V
Dual-Supply Operation from ±1.5V ~ ±18V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 20nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Input Common Mode Voltage Range Includes Ground
Large Outpu Voltage Swing:0V to Vcc-1.5V
Operating Temperature: -25°C ~ +85°C

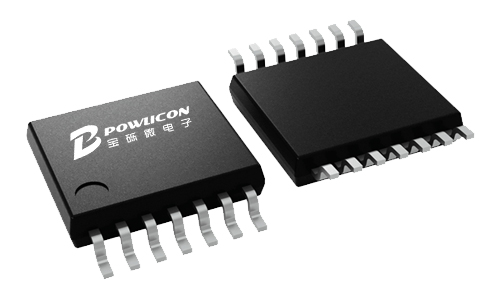

Small Package:LM324H Available in SOP-14 Package

3、Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Switcching Telephone
Portable Systems

2、General Description

The LM324H have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent currentof 250μA/amplifier at 5V. The LM324H is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM324H. The operating range is from 3V to 36V. The LM324H Quad is available in Green SOP-14 package.

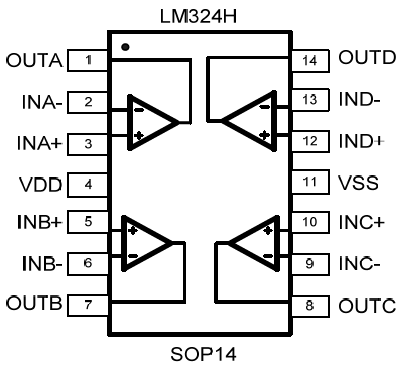

4、Pin Configuration

物質款型

供應壯況

的通道數

作業相電壓范圍

(V)

增益值帶寬的配置積

外部瞬時電流/工作區

平橫工作電壓

（mV）

失衡工作電壓溫漂

（μV/°C）

輸送偏置直流電壓

（nA）

芯片封裝

LM324H

量產

3.0-36

1MHz

250uA

SOT14
